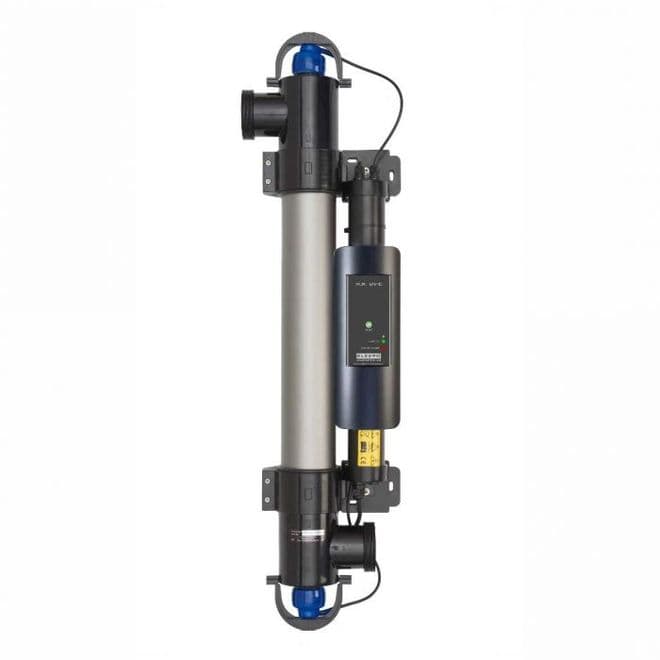

With the H.R.UV-C, up to 95% reflectivity is achieved (if you compare this to stainless steel reactors only 20 to 28% reflection is typically achived). The H.R.UV-C is 100% sea and saltwater compatible, Unlike stainless steel units that suffer corrosion issues.
The super reflective properties of the Elecro H.R.UV-C optimises the UV-C radiation and dramatically increases the performance. The inside surface casing is extremely repellent and therefore self-cleaning. Intelligent electronics indicate when the lamps are not producing sufficient UV-C and need to be changed. Ensuring your unit is always performing optimally.
Features
- Unrivalled reflection – up to 95% reflection is achieved drastically improving the efficiency.
- Compatible with and compliments all traditional treatment methods including: Chlorine, Bromine, Active Oxygen / Hydrogen Peroxide and Salt electrolysis.
- Narrow and extended chamber ensures maximum exposure to the powerful UV-C
- Long lamp life up to 9,000 hours.
- Easy to use and install, can be retro-fitted to any existing pool system.
- A self-cleaning system, reducing the need for maintenance.
- Intelligent lamp life indicator – signals when the lamps are no longer producing sufficient UV-C and need to be changed. Ensuring your unit is always performing optimally.
- Supplied with T-Piece and flowswitch.
Voltage and Frequency |
220 ~ 240Volts 50/60Hz or 110 ~ 120V 50/60Hz |
Maximum operating pressure |
3 Bar |
Max. Power Consumption |
Single Tube: 64W Double Tube: 128W |
Lamp |
Low pressure / High output |
Lamp Life |
Up to 9,000 hours |
Maximum Flow Rate |
Single Tube: 14m3/h Twin Tube: 28m3/h |
Dosing Rate |
30mj/cm2 at maximum flow |
IP Rating |
65 |
Water Connections |
ABS solvent weld unions 2”/63mm. Supplied with reducers for 11/2” or 50mm. |
Salt Water |
100% Sea and Salt Water compatible |
Approvals |
CE Approved |
Product Data
MPN | HR-55-UK |
