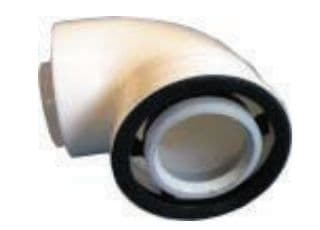

The 90 degree bend is used to turn the flue system through 90 degrees, for instance to connect onto a horizontal wall terminal from the boiler.
|Description||90 Degree Flue Bend|
|FEL (Flue Equivalent Length) - metres||1.5m|
The maximum Flue Equivalent Length (FEL) permitted on the Genie Boiler is 20 metres horizontal or vertical. Each flue section has its own FEL value - when designing your Flue system, you should add together the FEL for each section, and ensure the total value is under 20 metres.
